We are amongst the most renowned entity, widely engrossed in manufacturing, exporting and supplying the finest quality Diaphragm Operated Butterfly Valve. Finds comprehensive usage in machines and boilers in order to cut off the flow of liquid and air automatically at a certain pressure, this valve is precisely manufactured under the strict vigilance of our dexterous professionals using quality tested raw material and innovative technology in tune with international quality standards. Additionally, clients can easily avail this Diaphragm Operated Butterfly Valve from us at nominal prices.

Features:

Sturdy construction leads to withstand high pressure
High tensile strength
Sturdy design with flawless finish
Abrasion resistance with superior dimensional stability
Available in diverse specifications, dimensions and finishes
Rugged structure that enhance its durability
Polished with quality approved chemical that assure its rust proof nature

Robust Hydraulic Power for Industrial Applications

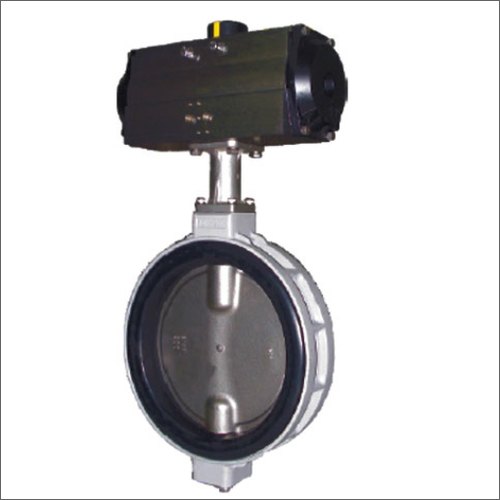

This diaphragm operated butterfly valve harnesses hydraulic power to deliver smooth, reliable actuation, making it suitable for large-scale industrial operations. The wafer-type design offers easy installation and a compact footprint, while the silver-colored cast body ensures both durability and corrosion resistance-ideal for prolonged use in rigorous environments.

Engineered to Handle Medium Pressure and Temperature

Designed to manage water media under medium pressure and working temperature, this valve maintains consistent flow control and tight shut-off. Its superior casting construction and engineering allow it to meet stringent industrial requirements, providing peace of mind for facility managers and maintenance teams across India.

FAQ's of Diaphragm Operated Butterfly Valve:

Q: How does a diaphragm operated butterfly valve function in hydraulic systems?

A: A diaphragm operated butterfly valve utilizes hydraulic energy to actuate its diaphragm, which in turn rotates the valve disc, allowing for precise flow control of water. This mechanism ensures smooth operation and responsive adjustment within industrial processes.

Q: What are the main benefits of using this valve in industrial water applications?

A: The key benefits include efficient hydraulic actuation, robust cast material for long life, corrosion-resistant silver finish, and a wafer-type design that allows for convenient installation between existing flanges. These features contribute to enhanced operational reliability in water handling systems.

Q: When is it most appropriate to use this butterfly valve type?

A: This valve is best suited for scenarios requiring dependable medium pressure water control in industrial facilities. It is ideal when space constraints demand a compact solution and where quick, consistent actuation is necessary for optimum process performance.

Q: Where can this valve be installed within an industrial setup?

A: The valve is designed for easy integration into water pipelines that utilize flanged connections. Its wafer-type construction permits installation between standard flanges, making it suitable for most industrial plants in India dealing with water distribution and control.

Q: What is the process of installing this wafer type butterfly valve?

A: To install, align the valve between the pipeline flanges, insert bolts through the corresponding holes, and tighten to specification. Ensure connections are secure for leak-free operation. The valve is ready for hydraulic connection and subsequent system integration.

Q: How does the valve's casting material contribute to its durability?

A: The use of casting in the valve body provides excellent structural integrity and longevity. It enhances resistance to pressure fluctuations, mechanical stresses, and corrosion-crucial for maintaining reliable performance in industrial applications.

Q: What advantages does the hydraulic power source offer for valve operation?

A: Hydraulic actuation enables quick, forceful, and precise control compared to manual or pneumatic systems. It reduces the need for manual intervention, enhances safety, and ensures consistent operation even under variable industrial conditions.
